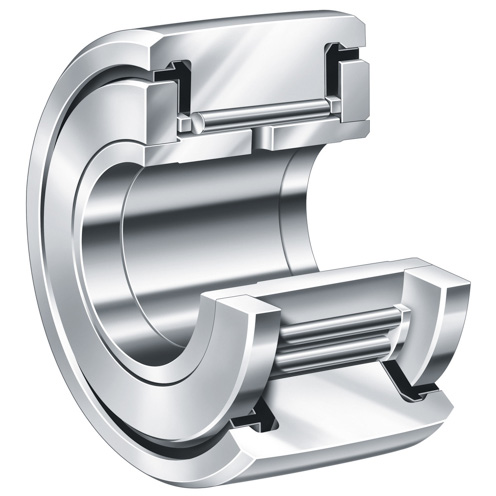

STO40 Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A STO40

Bearing Element

 N/A Needle Rollers

Bore Diameter

 N/A 40 mm

Closure Type

 N/A Open

Finish/Coating

 N/A Uncoated

Lubrication Hole Location

 N/A Inner Ring

Maximum Speed

 N/A 2210 rpm

Operating Temperature Range

 N/A -30 to 140 ºC

Radial Dynamic Load Capacity

 N/A 5400 lbf

Radial Static Load Capacity

 N/A 8800 lbf

Roller Diameter

 N/A 80 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 19.8 mm

Weight

 N/A 1.40 lb
