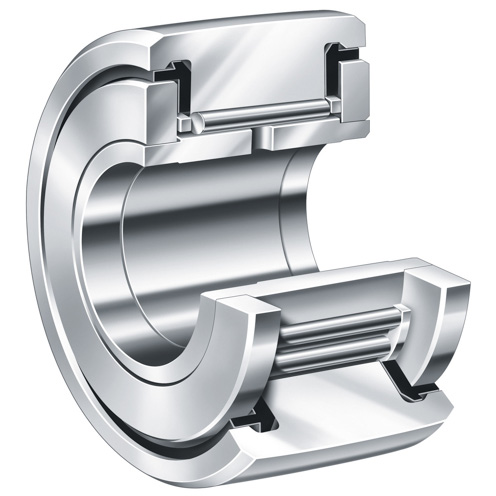

NATR35-PP Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A NATR35-PP

Bearing Element

 N/A Needle Rollers

Bore Diameter

 N/A 35 mm

Closure Type

 N/A Three-Stage Sealing Both Sides with Plastic Axial Plain Washers

Finish/Coating

 N/A Uncoated

Lubrication Hole Location

 N/A Inner Ring

UPC Code

 N/A 4012802422139

Maximum Speed

 N/A 2000 rpm

Operating Temperature Range

 N/A -30 to 100 ºC

Radial Dynamic Load Capacity

 N/A 5700 lbf

Radial Static Load Capacity

 N/A 10000 lbf

Roller Diameter

 N/A 72 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 29 mm

Series

 N/A NATR-PP

Weight

 N/A 1.65 lb
