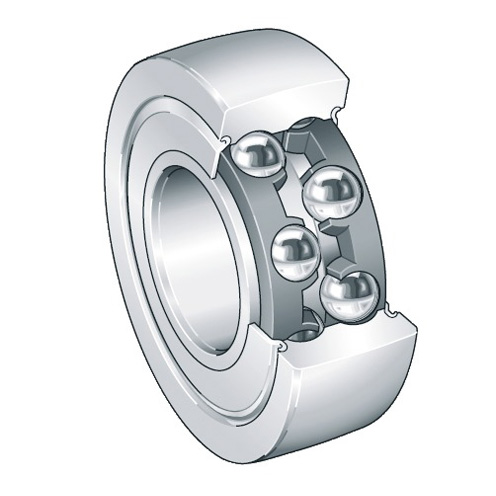

LR5002-2RS Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A LR5002-2RS

Bearing Element

 N/A Balls - Two Rows

Bore Diameter

 N/A 15 mm

Closure Type

 N/A Sealed

Finish/Coating

 N/A Uncoated

Lubrication Hole Location

 N/A Inner Ring

Maximum Speed

 N/A 14500 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Radial Dynamic Load Capacity

 N/A 1460 lbf

Radial Static Load Capacity

 N/A 920 lbf

Roller Diameter

 N/A 35 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 13 mm

Weight

 N/A 0.15 lb
