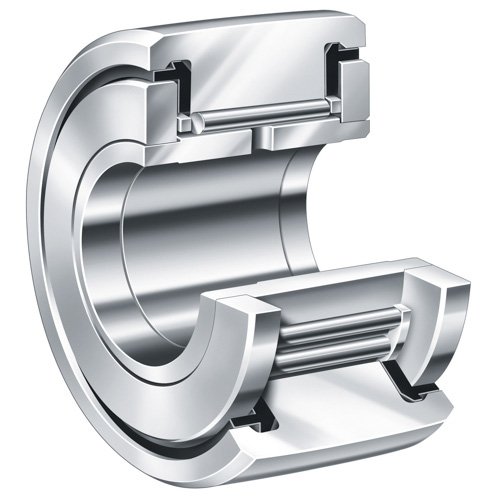

NATR6 Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A NATR6

Bearing Element

 N/A Needle Rollers

Bore Diameter

 N/A 6 mm

Closure Type

 N/A Gap Seals Both Sides

Finish/Coating

 N/A Uncoated

Lubrication Hole Location

 N/A Inner Ring

UPC Code

 N/A 4054364121228

Maximum Speed

 N/A 20000 rpm

Operating Temperature Range

 N/A -30 to 140 ºC

Radial Dynamic Load Capacity

 N/A 790 lbf

Radial Static Load Capacity

 N/A 880 lbf

Roller Diameter

 N/A 19 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 11 mm

Series

 N/A NATR

Weight

 N/A 0.06 lb
