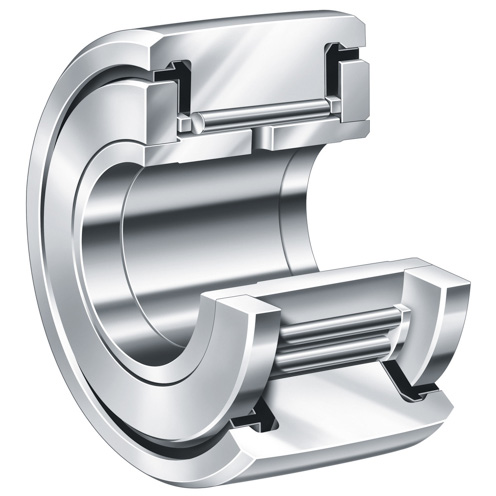

NATR8 Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A NATR8

Bearing Element

 N/A Needle Rollers

Bore Diameter

 N/A 8 mm

Closure Type

 N/A Gap Seals Both Sides

Finish/Coating

 N/A Uncoated

Lubrication Hole Location

 N/A Inner Ring

UPC Code

 N/A 4012801176118

Maximum Speed

 N/A 15000 rpm

Operating Temperature Range

 N/A -30 to 140 ºC

Radial Dynamic Load Capacity

 N/A 1240 lbf

Radial Static Load Capacity

 N/A 1440 lbf

Roller Diameter

 N/A 24 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 14 mm

Series

 N/A NATR

Weight

 N/A 0.11 lb
