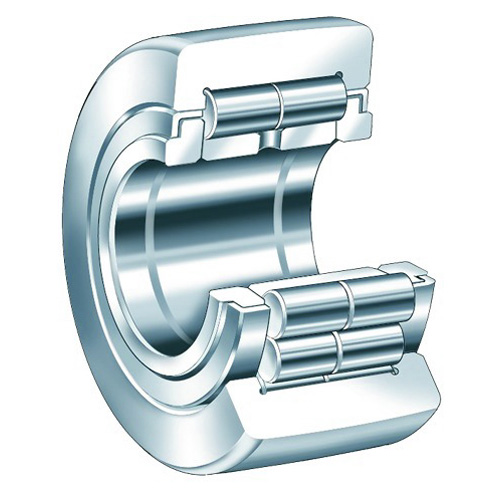

NUTR30 Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A NUTR30

Bearing Element

 N/A Cylindrical Rollers

Bore Diameter

 N/A 30 mm

Closure Type

 N/A Sealed

Finish/Coating

 N/A Uncoated

Lubrication Hole Location

 N/A Inner Ring

Maximum Speed

 N/A 2600 rpm

Operating Temperature Range

 N/A -30 to 140 ºC

Radial Dynamic Load Capacity

 N/A 9000 lbf

Radial Static Load Capacity

 N/A 11500 lbf

Roller Diameter

 N/A 62 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 28 mm

Weight

 N/A 1.23 lb
