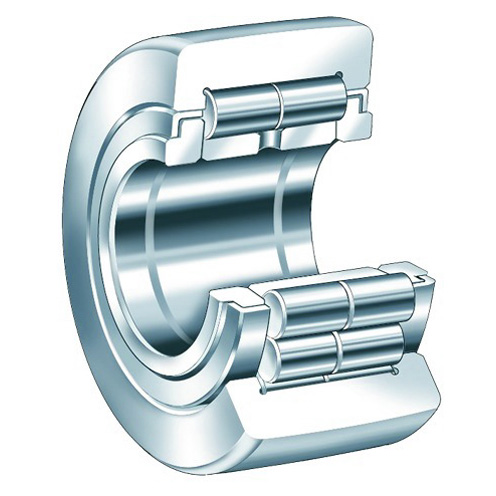

NUTR 40 90 Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A NUTR 40 90

Bearing Element

 N/A Cylindrical Rollers

Bore Diameter

 N/A 40 mm

Closure Type

 N/A Sealed

Finish/Coating

 N/A Uncoated

Lubrication Hole Location

 N/A Inner Ring

Maximum Speed

 N/A 1600 rpm

Operating Temperature Range

 N/A -30 to 140 ºC

Radial Dynamic Load Capacity

 N/A 14800 lbf

Radial Static Load Capacity

 N/A 21600 lbf

Roller Diameter

 N/A 90 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 30 mm

Weight

 N/A 2.98 lb
