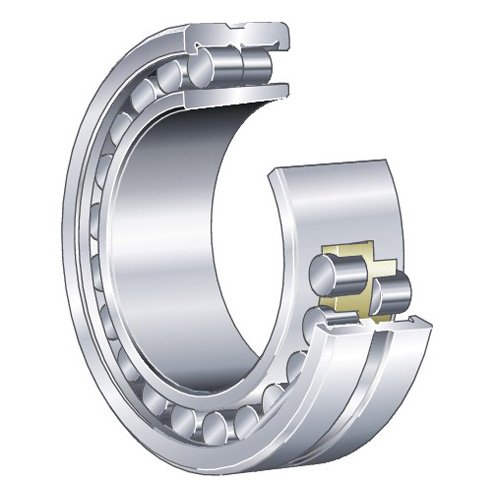

NNTR60X150X75-2ZL Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A NNTR60X150X75-2ZL

Bearing Element

 N/A Cylindrical Rollers

Bore Diameter

 N/A 60 mm

Closure Type

 N/A Shielded

Finish/Coating

 N/A Uncoated

Lubrication Hole Location

 N/A Inner Ring

Maximum Speed

 N/A 800 rpm

Operating Temperature Range

 N/A -30 to 140 ºC

Radial Dynamic Load Capacity

 N/A 57000 lbf

Radial Static Load Capacity

 N/A 79000 lbf

Roller Diameter

 N/A 150 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 73 mm

Weight

 N/A 20.34 lb
