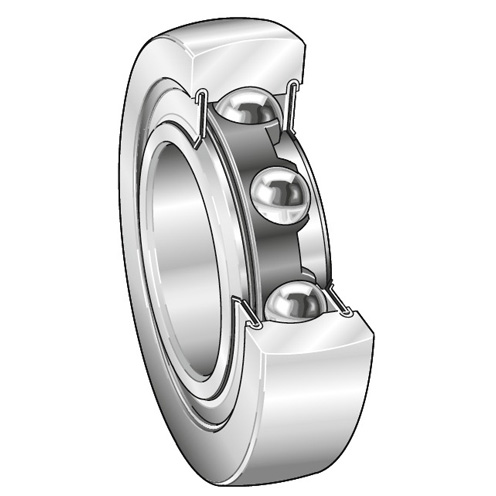

LR203-2RSR Yoke Type Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A LR203-2RSR

Bearing Element

 N/A Balls - One Row

Bore Diameter

 N/A 17 mm

Closure Type

 N/A Sealed

Finish/Coating

 N/A Uncoated

Lubrication Hole Location

 N/A Inner Ring

Maximum Speed

 N/A 9000 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Radial Dynamic Load Capacity

 N/A 8500 N

Radial Static Load Capacity

 N/A 4450 N

Roller Diameter

 N/A 47 mm

Roller Shape

 N/A Crowned

Roller Width

 N/A 12 mm

Weight

 N/A 0.29 lb
