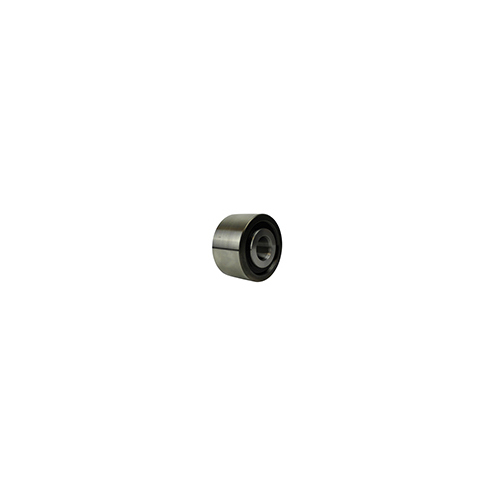

HPCA-76-1 Load Runner
Unit of Measure

Specifications

Supplier Name

 N/A Osborn Load Runners

Manufacturer Part Number

 N/A HPCA-76

Axial Static Load Capacity

 N/A 53380 N

Bearing Element

 N/A Tapered Rollers

Bore Diameter

 N/A 22 mm

Closure Type

 N/A Sealed

Finish/Coating

 N/A Chrome Plated Zinc Plated

Lubrication Hole Location

 N/A None

Operating Temperature Range

 N/A -30 to 225 ºF

Radial Dynamic Load Capacity

 N/A 63480 lb

Radial Static Load Capacity

 N/A 88960 lb

Roller Diameter

 N/A 76 mm

Roller Material

 N/A Stainless Steel

Roller Shape

 N/A Flat

Roller Width

 N/A 46 mm

Weight

 N/A 2.73 lb
