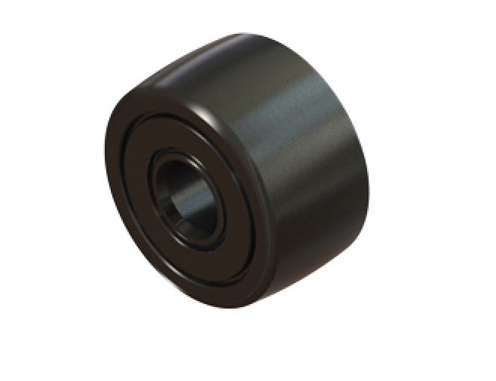

YCCF 6.00 S Yoke Follower
Unit of Measure

Specifications

Supplier Name

 N/A PCI Procal Inc.

Manufacturer Part Number

 N/A YCCF-6.00-S

Series

 N/A YCCF

Bearing Element

 N/A Needle Rollers

Bore Diameter

 N/A 2.2500 in

Closure Type

 N/A Sealed

Lubrication Type

 N/A Regreasable

UPC Code

 N/A 00841946109415

Operating Temperature [Max]

 N/A 250 ºF

Operating Temperature Range

 N/A -30 to 250 ºF

Overall Width

 N/A 3.3750 in

Radial Dynamic Load Capacity

 N/A 61690 lbf

Radial Static Load Capacity

 N/A 160900 lbf

Roller Diameter

 N/A 6.0000 in

Roller Material

 N/A Carbon Steel

Roller Shape

 N/A Crowned

Roller Width

 N/A 3.25 in

Seal Type

 N/A Moly-Filled Nylon Lip

Weight

 N/A 20.620 lb

Features & Benefits

Features & Benefits

 N/A
  • Crowned Cam Followers have a spherical body profile and are used to reduce the effects of misalignment by better distributing load over the body and internal bearing elements
  • Crowned rollers are also used in rotary applications to minimize scrubbing or skidding
