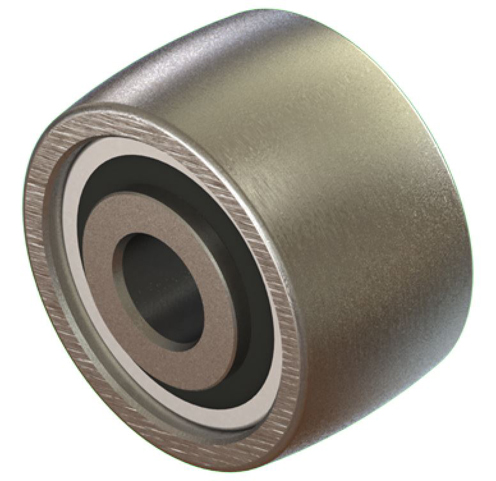

CTRY-16.00 Crowned Track Roller Yoke
Unit of Measure

Specifications

Supplier Name

 N/A PCI Procal Inc.

Manufacturer Part Number

 N/A CTRY-16.00

Series

 N/A CTRY

Bearing Element

 N/A Tapered Rollers

Closure Type

 N/A Sealed

Lubrication Type

 N/A Sealed for Life

UPC Code

 N/A 00841946101273

Operating Temperature [Max]

 N/A 250 ºF

Overall Width

 N/A 5.5000 in

Radial Dynamic Load Capacity

 N/A 137300 lbf

Radial Static Load Capacity

 N/A 276000 lbf

Roller Diameter

 N/A 16.0000 in

Roller Material

 N/A Carbon Steel

Roller Shape

 N/A Crowned

Roller Width

 N/A 5.2500 in

Seal Type

 N/A Rubber Lip

Axial Dynamic Load Capacity

 N/A 62000 lbf

Axial Static Load Capacity

 N/A 194000 lbf

Weight

 N/A 261.580 lb

Features & Benefits

Features & Benefits

 N/A
  • Crowned Track Rollers have a spherical body profile and are used to reduce the effects of misalignment by better distributing load
  • Crowned rollers are also used in rotary applications to minimize scrubbing or skidding
