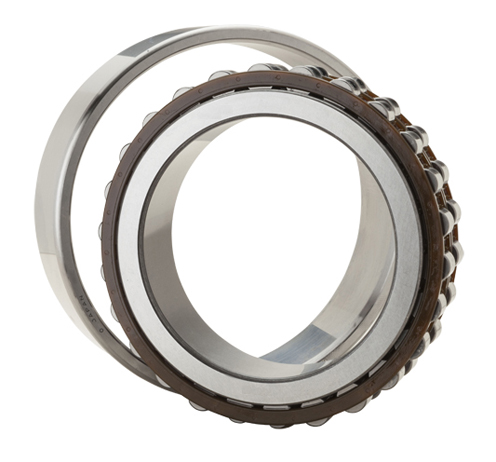

NN3016KC1NAP4 Cylindrical Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A NN3016KC1NAP4

Series

 N/A NN

Bearing Material

 N/A Hardened Alloy Steel

Bore Diameter

 N/A 80 mm

Bore Type

 N/A Tapered 1:12

Cage Material

 N/A High Strength, 2-Piece, Machined Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 116000 N

Fillet Radius

 N/A 1.1 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (3) Inner Ring

Internal Clearance

 N/A C1NA

Maximum Speed

 N/A 5900 rpm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 34 mm

Outside Diameter

 N/A 125 mm

Overall Width

 N/A 34 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 4

Ring Separation

 N/A Separable Outer Ring

Number of Rows

 N/A Double-Row

Static Load Rating

 N/A 179000 N

Weight

 N/A 3.26 lb
