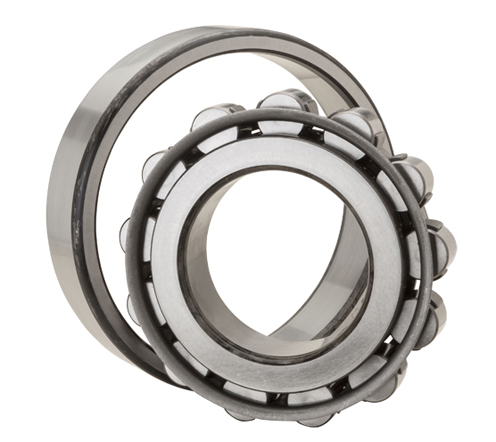

N319 Cylindrical Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A N319

Series

 N/A N

Bearing Material

 N/A Hardened Alloy Steel

Bore Diameter

 N/A 95 mm

Bore Type

 N/A Straight

Cage Material

 N/A Pressed Steel

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 259000 N

Fillet Radius

 N/A 2.5 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (2) Inner Ring

Internal Clearance

 N/A CN

Maximum Speed

 N/A 4000 rpm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 45 mm

Outside Diameter

 N/A 200 mm

Overall Width

 N/A 45 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 0

Ring Separation

 N/A Separable Outer Ring

Number of Rows

 N/A Single-Row

Static Load Rating

 N/A 285000 N

Weight

 N/A 13.3600 lb
