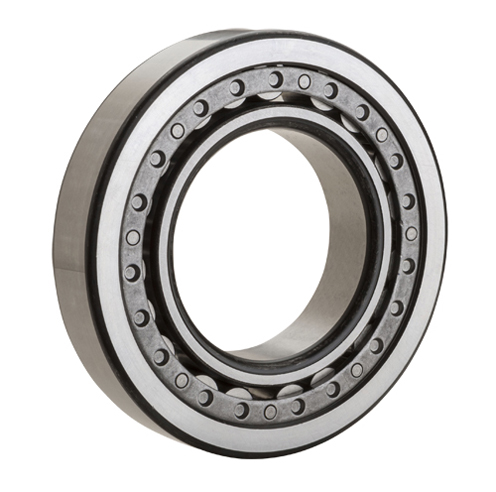

MA1310EL Cylindrical Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A MA1310EL

Series

 N/A MA

Bearing Material

 N/A Hardened Alloy Steel

Bore Diameter

 N/A 50 mm

Bore Type

 N/A Straight

Cage Material

 N/A Composite Steel

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 121000 N

Fillet Radius

 N/A 2.03 mm

Finish/Coating

 N/A Uncoated

Flanges

 N/A (2) Outer Ring

Internal Clearance

 N/A CN

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 27 mm

Outside Diameter

 N/A 110 mm

Overall Width

 N/A 27 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 0

Ring Separation

 N/A Separable Inner Ring

Number of Rows

 N/A Single-Row

Static Load Rating

 N/A 135000 N

Weight

 N/A 2.8400 lb
