Supplier Name |

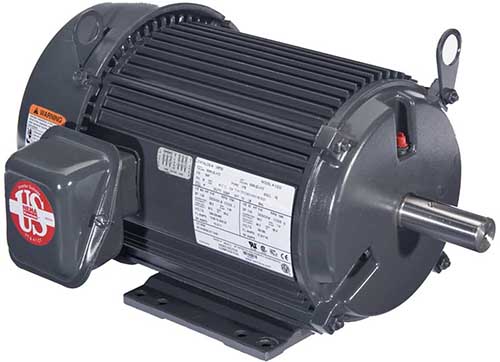

N/A US Motors (Nidec) |
Manufacturer Part Number |
N/A U32D10C |
Base Speed |
N/A 1170 rpm1770 rpm |
Duty/Condition Type |
N/A Continuous Duty |
Enclosure Type |
N/A Totally Enclosed Fan Cooled (TEFC) |
Frame Material |
N/A Aluminum |
Frame Size |
N/A 182T |
Frequency |
N/A 60 Hz |
Harmonization Code |
N/A 8501.52.4000 |
Type |
N/A Two Speed Motor |
Power for 6 Poles |
N/A 1 hp |
Power for 4 Poles |
N/A 1-1/2 hp |
Phase |
N/A 3 |
Number of Poles |
N/A 4 6 |
Supply Voltage |
N/A 460 V |
Mounting Type |
N/A Footed Horizontal |
Synchronous Speed |
N/A 1200 rpm1800 rpm |
Weight |
N/A 50 lb |
