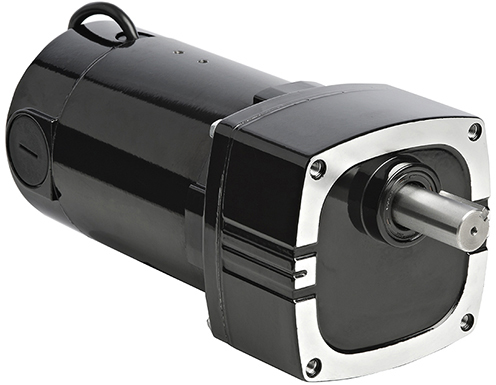

1446 Gearmotor
Unit of Measure

Specifications

Supplier Name

 N/A Bodine Electric Company

Manufacturer Part Number

 N/A 1446

Duty / Condition Type

 N/A Continuous Duty

Enclosure Type

 N/A Totally Enclosed Non-Ventilated (TENV)

Full Load Current

 N/A 1.70 A

Full Load Torque

 N/A 190 in·lb

Gear Ratio

 N/A 65.5:1

Harmonization Code

 N/A 8501.31.3000

Input Power

 N/A 1/4 hp

Insulation Class

 N/A B

Ingress Protection Rating

 N/A Ingress Protection (IP20)

Supply Voltage

 N/A 130 V

Motor Type

 N/A Brushed

Mounting Type

 N/A Face

National Electrical Manufacturers Association (NEMA) Frame

 N/A 33A

Output Speed

 N/A 38.0 rpm

Overhung Load

 N/A 9.7 lb

Shaft Type

 N/A Parallel

Stage

 N/A 3

Standards Met

 N/A Canadian Standards Association (CSA) CURUS Restriction of Hazardous Substances (RoHS) Underwriter Laboratories (UL)

Weight

 N/A 9.70 lb
