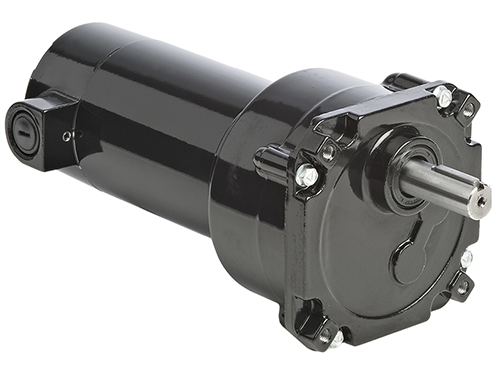

1/18 417 TENV 24VDC 26A
Unit of Measure

Specifications

Supplier Name

 N/A Bodine Electric Company

Manufacturer Part Number

 N/A 4657

Duty / Condition Type

 N/A Continuous Duty

Enclosure Type

 N/A Totally Enclosed Non-Ventilated (TENV)

Full Load Current

 N/A 2.60 A

Full Load Torque

 N/A 7 in·lb

Gear Ratio

 N/A 6:1

Harmonization Code

 N/A 8501.31.2000

Input Power

 N/A 1/17 hp

Insulation Class

 N/A B

Ingress Protection Rating

 N/A Ingress Protection (IP20)

Supply Voltage

 N/A 24 V

Motor Type

 N/A Brushed

Mounting Type

 N/A Face

National Electrical Manufacturers Association (NEMA) Frame

 N/A 24A

Output Speed

 N/A 417.0 rpm

Overhung Load

 N/A 100 lb

Shaft Type

 N/A Parallel

Stage

 N/A 2

Standards Met

 N/A Canadian Standards Association (CSA) CURUS Restriction of Hazardous Substances (RoHS) Underwriter Laboratories (UL)

Weight

 N/A 5 lb
