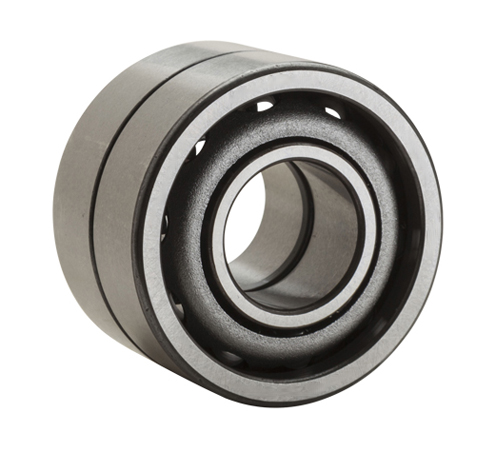

7206CDB/GNP5 Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A 7206CDB/GNP5

Series

 N/A 72C

Bearing Material

 N/A High Carbon Chrome Steel

Bore Diameter

 N/A 30 mm

Cage Material

 N/A Nylon

Closure Type

 N/A Open

Contact Angle

 N/A 15 º

Duplex Type

 N/A Back to Back

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 16 mm

Internal Clearance

 N/A C0

Maximum Speed (Grease)

 N/A 14000 rpm

Maximum Speed (Oil)

 N/A 19000 rpm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 16 mm

Outside Diameter

 N/A 62 mm

Overall Width

 N/A 32 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 5

Radial Dynamic Load Capacity

 N/A 37500 N

Radial Static Load Capacity

 N/A 29500 N

Weight

 N/A 0.84 lb
