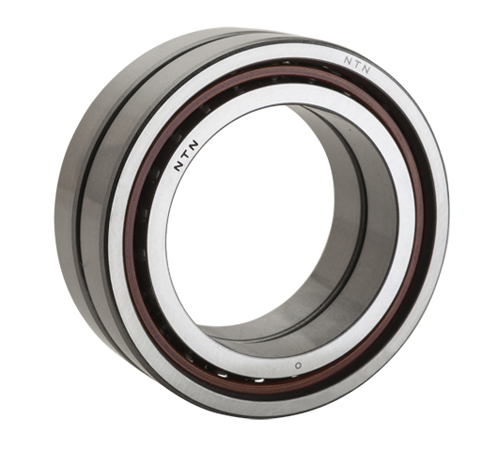

BNT008DB/GNP2 Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A BNT008DB/GNP2

Series

 N/A BNT0

Bearing Material

 N/A High Carbon Chrome Steel

Bore Diameter

 N/A 40 mm

Cage Material

 N/A Phenolic Resin

Closure Type

 N/A Open

Contact Angle

 N/A 15 º

Duplex Type

 N/A Tandem

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 15 mm

Maximum Speed (Grease)

 N/A 14000 rpm

Maximum Speed (Oil)

 N/A 18000 rpm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 15 mm

Outside Diameter

 N/A 68 mm

Overall Width

 N/A 30 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 2

Radial Dynamic Load Capacity

 N/A 25500 N

Radial Static Load Capacity

 N/A 20800 N

Weight

 N/A 0.82 lb
