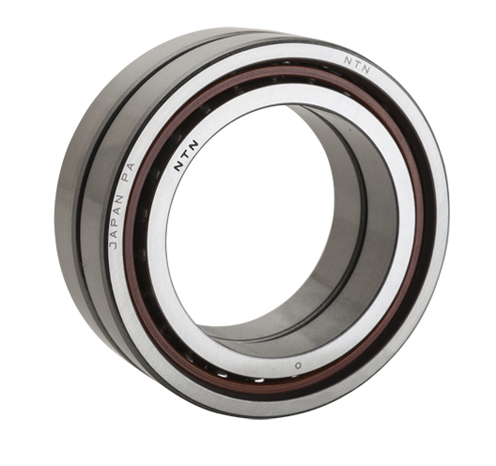

HTA028UAT2DB/GNP4L Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A HTA028UAT2DB/GNP4L

Series

 N/A HTA

Bearing Material

 N/A High Carbon Chrome Steel

Bore Diameter

 N/A 140 mm

Cage Material

 N/A Nylon

Closure Type

 N/A Open

Contact Angle

 N/A 30 º

Duplex Type

 N/A HTA Type

Fillet Radius

 N/A 2 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 31.50 mm

Maximum Speed (Grease)

 N/A 5700 rpm

Maximum Speed (Oil)

 N/A 7100 rpm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 31.50 mm

Outside Diameter

 N/A 210 mm

Overall Width

 N/A 63 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 4

Radial Dynamic Load Capacity

 N/A 111000 N

Radial Static Load Capacity

 N/A 315000 N
