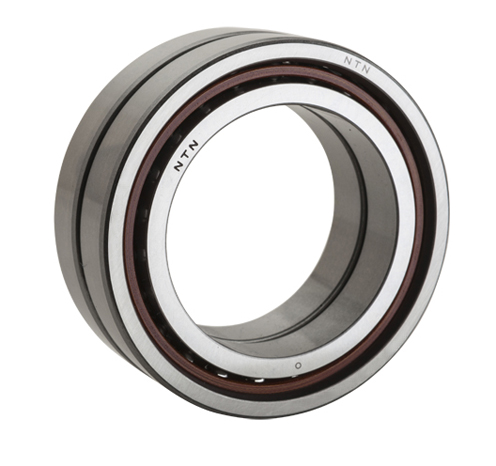

5S-BNT908DTP2 Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A 5S-BNT908DTP2

Series

 N/A 5S

Bearing Material

 N/A High Carbon Chrome Steel

Bore Diameter

 N/A 40 mm

Cage Material

 N/A Phenolic Resin

Closure Type

 N/A Open

Contact Angle

 N/A 15 º

Duplex Type

 N/A Tandem

Fillet Radius

 N/A 0.6 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 12 mm

Internal Clearance

 N/A C0

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 12 mm

Outside Diameter

 N/A 62 mm

Overall Width

 N/A 24 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 2
