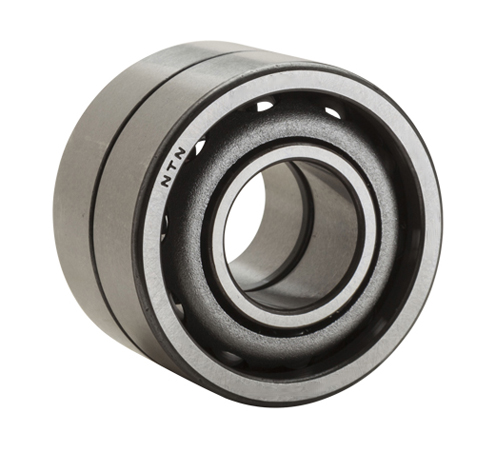

7005CDF/GMP4 Angular Contact Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A 7005CDF/GMP4

Series

 N/A 70

Bearing Material

 N/A High Carbon Chrome Steel

Bore Diameter

 N/A 25 mm

Cage Material

 N/A Nylon

Closure Type

 N/A Open

Contact Angle

 N/A 15 º

Duplex Type

 N/A Face to Face

Fillet Radius

 N/A 0.6 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 12 mm

Internal Clearance

 N/A C0

Maximum Speed (Grease)

 N/A 21125 rpm

Maximum Speed (Oil)

 N/A 33865 rpm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 12 mm

Outside Diameter

 N/A 47 mm

Overall Width

 N/A 24 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 4

Weight

 N/A 0.33 lb
