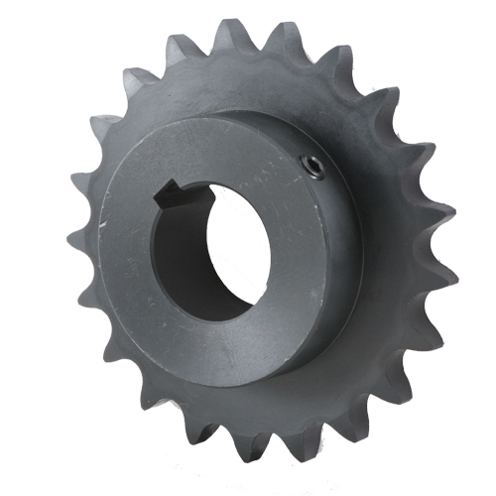

80B17F 2 Sprocket
Unit of Measure

Specifications

Supplier Name

 N/A Tsubaki (UST)

Manufacturer Part Number

 N/A 80B17F-2

Bore Diameter

 N/A 2.0000 in

Bore Type

 N/A Finished with Keyway

Chain Number

 N/A 80

Chain Pitch Size

 N/A 1 in

Hardened Teeth

 N/A Non-Hardened Teeth

Keyway Size

 N/A 1/2 x 1/4 in

Length Through Bore

 N/A 1-1/2 in

Material

 N/A Steel

Number of Hubs

 N/A 1

Number of Strands Across

 N/A 1

Number of Teeth

 N/A 17

Outside Diameter

 N/A 4.794 in5.949 in

Pitch Diameter

 N/A 5.442 in

Pitch Type

 N/A Single

Tooth Width

 N/A 0.575 in

Weight

 N/A 7.00 lb
