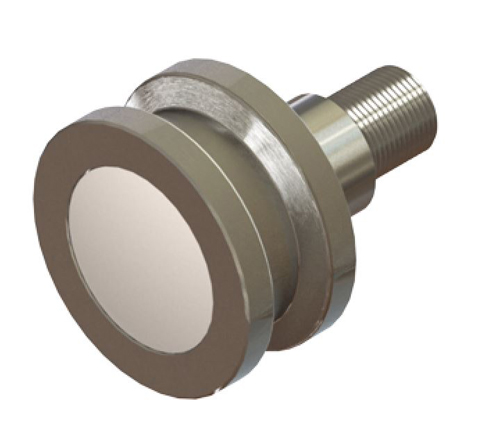

FFTRE-4.00 Double Flanged Track Roller
Unit of Measure

Specifications

Supplier Name

 N/A PCI Procal Inc.

Manufacturer Part Number

 N/A FFTRE-4.00

Series

 N/A FFTRE

Axial Dynamic Load Capacity

 N/A 5790 lbf

Axial Static Load Capacity

 N/A 12000 lbf

Bearing Element

 N/A Tapered Rollers

Closure Type

 N/A Sealed

Eccentric Bushing Length

 N/A 1.3600 in

Eccentric Stud Diameter

 N/A 1.8120 in

Eccentricity

 N/A 0.060 in

UPC Code

 N/A 841946102607

Radial Dynamic Load Capacity

 N/A 14300 lbf

Radial Static Load Capacity

 N/A 20000 lbf

Roller Diameter

 N/A 4.0000 in

Roller Material

 N/A Carbon Steel

Roller Shape

 N/A Double Flanged

Roller Width

 N/A 1.9400 in

Seal Type

 N/A Rubber Dual Lip

Stud Diameter

 N/A 1.2500 in

Stud Length

 N/A 2.7500 in

Stud Material

 N/A Carbon Steel

Stud Type

 N/A Eccentric

Thread Length

 N/A 1.3950 in

Thread Size

 N/A 1-1/4-12

Weight

 N/A 9.61 lb

Features & Benefits

Features & Benefits

 N/A
  • Double Flanged Track Rollers provide dual direction guidance along the track in applications where side loads are expected
  • Like most locational units, Double Flanged rollers are used in tandem with plain rollers to prevent overload from misalignment
