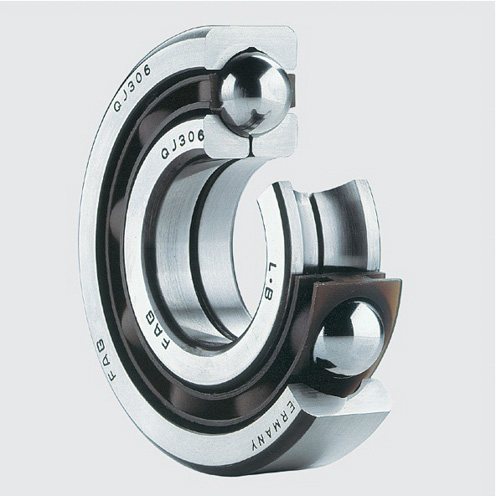

Item # 02726828, FAG (Schaeffler) QJ2 Series 40 Millimeter (mm) Outer Ring Width Four-Point Contact Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A FAG (Schaeffler)
Manufacturer Part Number	N/A QJ226-N2-MPA
Cage Material	N/A Brass
Closure Type	N/A Open
Fillet Radius	N/A 2.5 mm
Finish/Coating	N/A Uncoated
Inside Diameter	N/A 130 mm
Internal Clearance	N/A C0
Maximum Speed	N/A 5100 rpm
Operating Temperature Range	N/A -30 to 150 ºC
Outer Ring Width	N/A 40 mm
Outside Diameter	N/A 230 mm
Overall Width	N/A 40 mm
Precision Rating	N/A Not Rated
Radial Dynamic Load Capacity	N/A 290000 N
Radial Static Load Capacity	N/A 365000 N
Resistance Features	N/A Chemical Resistant
Series	N/A QJ2
Standards Met	N/A DIN628-4
Weight	N/A 16.94 lb
