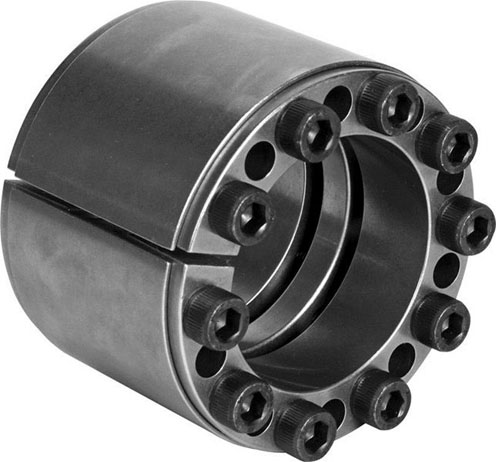

C405E-243 Keyless Locking Assembly
Unit of Measure

Specifications

Supplier Name

 N/A Climax Metal Products

Manufacturer Part Number

 N/A C405E-243

Series

 N/A C405

Bore Diameter

 N/A 2-7/16 in

Coupling Length

 N/A 2.9130 in

Harmonization Code

 N/A 8483.60.8000

Length Through Bore

 N/A 2.5980 in

Material

 N/A Steel

Maximum Transmitted Torque

 N/A 4703 ft·lb

Number of Locking Screws

 N/A 10

Outside Diameter

 N/A 3.7402 in

Screw Length

 N/A 55 mm

Screw Thread Size

 N/A M8 x 55

Weight

 N/A 4.00 lb
