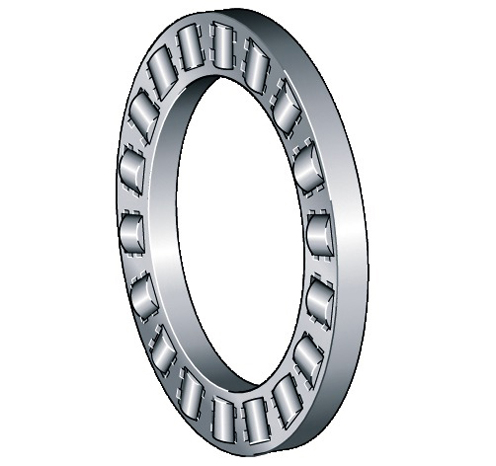

AXK1730 Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A AXK1730

Bearing Width

 N/A 30 mm

Bore Diameter

 N/A 17 mm

Cage Material

 N/A Steel

Compatible Washer

 N/A AS1730

Dynamic Load Rating

 N/A 11900 N

Maximum Speed

 N/A 4500 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 2 mm

Static Load Rating

 N/A 39500 N

Thrust Bearing Type

 N/A Roller and Cage Assembly

Weight

 N/A 0.02 lb
