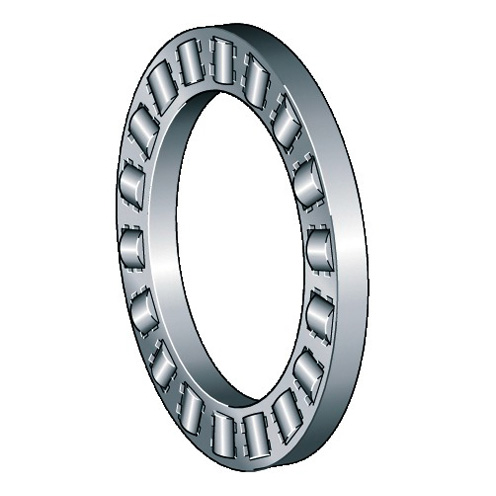

AXK6085 Thrust Needle Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A AXK6085

Bearing Width

 N/A 3 mm

Bore Diameter

 N/A 60 mm

Cage Material

 N/A Nylon

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 85 mm

Thrust Bearing Type

 N/A Roller and Cage Assembly

Weight

 N/A 0.09 lb
