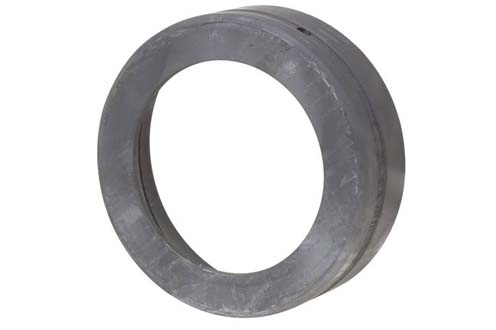

RBC® Spherical Plain Bearing - Unsealed - Outer Ring
Unit of Measure

Specifications

Supplier Name

 N/A RBC® Bearings

Manufacturer Part Number

 N/A ORB52SA

Series

 N/A ORB

UPC Code

 N/A 637400003685

Prop 65

 N/A Yes

Bearing Material

 N/A 52100 Bearing Quality Steel

Bearing Type

 N/A Outer Ring Unsealed

Bore Diameter

 N/A 3.58 in

Compatible Bearing Type

 N/A Spherical

Finish/Coating

 N/A Molybdenum Disulfide

Inside Diameter

 N/A 3.580 in

Lubrication Hole Type

 N/A Lubrication Hole/Groove

Lubrication Type

 N/A Lubrication Hole/Groove

Operating Temperature [Max]

 N/A 350 ºF

Outer Ring Type

 N/A Flat with Ring Groove

Outside Diameter

 N/A 5.13 in

Outside Diameter Design

 N/A Flat with Ring Groove

Overall Width

 N/A 2.030 in

Weight

 N/A 2.81 lb
