Supplier Name |
N/A Nexen |
Manufacturer Part Number |
N/A 882900 |
Actuation |
N/A Air/Spring |
Approximate Brake Facing Life |
N/A 572 hp·hr |
Approximate Clutch Facing Life |
N/A 572 hp·hr |
Bore Type |
N/A Straight |
Brake Facing Edge Color Code |
N/A Red |
Brake Facing Type |
N/A Standard Coefficient |
Clutch Air Chamber Volume when New |
N/A 0.245 in³ |
Clutch Air Chamber Volume when Worn Out |
N/A 0.835 in³ |
Clutch Facing Edge Color Code |
N/A Red |
Clutch Facing Type |
N/A Standard Coefficient |
Combination Type |

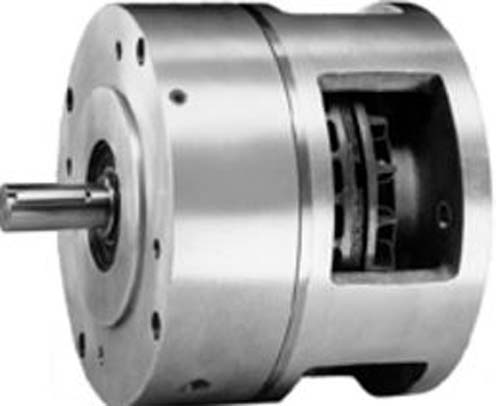

N/A National Electrical Manufacturers Association (NEMA) C-Faced Clutch-Brake |
Combined Continuous Thermal Dissipation |
N/A 0.50 hp |
Drive Inertia |
N/A 16.80 lb·in² |
Finish |
N/A Black Oxide Machined Aluminum |
Frame Size |
N/A 143TC 145TC |
Input Shaft Diameter |
N/A 0.875 in |
UPC Code |
N/A 662284162104 |
Maximum Speed |
N/A 1800 rpm |
Maximum Pressure |
N/A 70 psi |
Maximum Static Brake Torque |
N/A 400 in·lb |
Maximum Static Clutch Torque |
N/A 500 in·lb |
Minimum Engagement Pressure |
N/A 37 psi |
Minimum Release Pressure |
N/A 27 psi |
Open or Enclosed Design |
N/A Open |
Output Shaft Diameter |
N/A 0.875 in |
Overhung Load Capacity at 1800/1200 Rate per Minute (rpm) |
N/A 470 lb560 lb |
Port Size |
N/A 1/4 in |
Port Type |
N/A National Pipe Thread (NPT) |
Rating |
N/A European Conformity (CE) Restriction of Hazardous Substances (RoHS) |
Series |
N/A DAP |
Shaft Inertia |
N/A 17.60 lb/in² |
Temperature Range |
N/A 32 to 150 ºF |
Weight |
N/A 30.00 lb |
