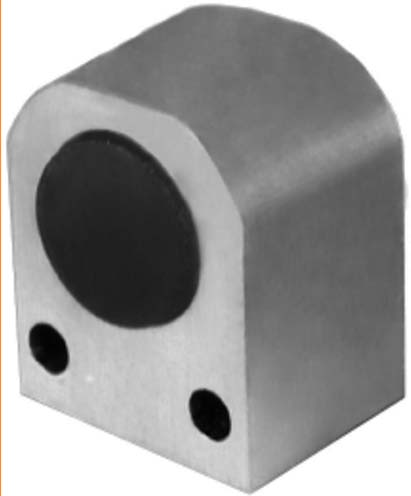

837000 Single Puck Caliper 1000
Unit of Measure

Specifications

Supplier Name

 N/A Nexen

Manufacturer Part Number

 N/A 837000

Approximate Brake Facing Life

 N/A 2022 hp·hr

Brake Facing Edge Color Code

 N/A Green

Brake Facing Effective Area

 N/A 0.8 in²

Brake Facing Type

 N/A Low Coefficient

Brake Peak Thermal Input Rate

 N/A 1.00 hp

Brake Series

 N/A Single Puck Caliper

Disc Thickness

 N/A Unlimited

Disc Working Radius

 N/A WR=D/2-0.5 in. for 6.000 in. or Larger Discs

Engagement

 N/A Air Engaged

Release

 N/A None

Finish

 N/A Bare Aluminum

Function

 N/A Stopping, Holding, and Tensioning

Maximum Pressure

 N/A 80 psi

Maximum Static Brake Torque with a 10.000 Inch (in) Disc

 N/A 77 in·lb

Mounting Configuration

 N/A Foot Mounted

Open or Enclosed Design

 N/A Open

Port Size

 N/A 1/8 in

Port Type

 N/A National Pipe Thread (NPT)

Rating

 N/A European Conformity (CE) Restriction of Hazardous Substances (RoHS)

Recommended Control

 N/A 940011 (3-Way Normally Open (N.O.)) 940012 (3-Way Normally Closed (N.C.)) 940017 (3-Way Normally Closed (N.C.) 0 to 100 psi) 940021 (3-Way 5 to 100 psi)

Static Torque Factor (Broken-In) at 80 Pound per Square Inch (psi)

 N/A 17 lb·ft

Weight

 N/A 1 lb

Duty Type

 N/A Light-Duty

Features & Benefits

Features & Benefits

 N/A
  • Light duty drag brakes are perfect for custom applications where space is limited and which do not require a full caliper
  • 2 Piston sizes, Models 625 & 1000
  • "O" ring sealed
  • Simple design for light duty tension control applications

General Information

General Information

 N/A No spring return so some facing drag is possible due to piston O-ring sticking. Typically used in light linear or rotary tension control applications.
