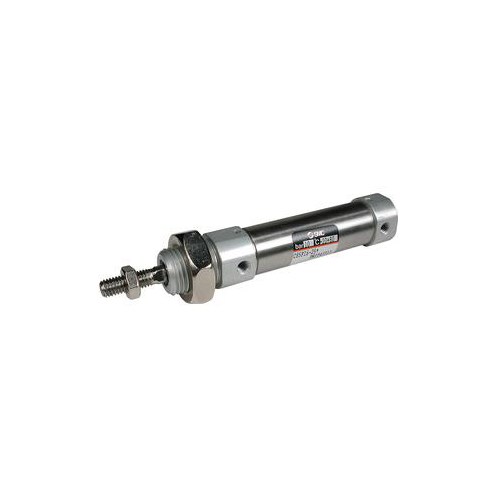

C85N16-125
Unit of Measure

Specifications

Supplier Name

 N/A SMC®

Manufacturer Part Number

 N/A C85N16-125

Bore Diameter

 N/A 16 mm

Cushion Type

 N/A Rubber Bumper

Cylinder Type

 N/A International Organization for Standardization (ISO)/European Committee for Oil-hydraulic and Pneumatic Transmissions (CETOP)

Mounting Type

 N/A Clevis

Operating Pressure Range

 N/A 0.05 to 1 MPa

Operating Temperature Range

 N/A -20 to 80 ºC

Overall Length

 N/A 236 mm

Piston Action

 N/A Double-Acting

Port Gender

 N/A Female

Port Size

 N/A M5 x 0.8

Port Thread Standard

 N/A International Standardization of Organization (ISO)

Weight

 N/A 0.39 lb
