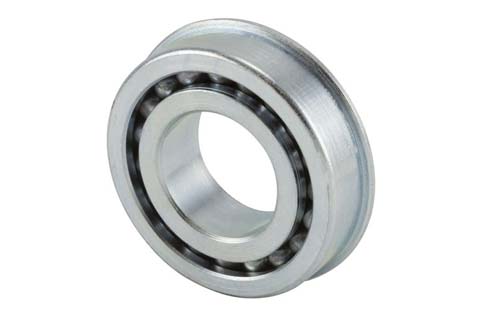

Item # 00107203, Nice® (RBC®) 1 Inch (in) Bore Diameter Flanged Ball Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A Heim® Bearing (RBC® Bearings)
Manufacturer Part Number	N/A RF163216
UPC Code	N/A 637400158941
Prop 65	N/A Yes
Bearing Material	N/A Case Hardened Carbon Steel
Bearing Type	N/A Radial
Bore Diameter	N/A 1.00 in
Bore Type	N/A Round
Cage Material	N/A No Cage
Closure Type	N/A Open
Dynamic Load Capacity	N/A 1050 lbf
Finish/Coating	N/A Uncoated
Flange Diameter	N/A 2.125 in
Inner Ring Width	N/A 0.5625 in
Internal Clearance	N/A C0
Maximum Speed	N/A 1000 rpm
Outer Ring Width	N/A 0.5 in
Outside Diameter	N/A 2.0000 in
Outside Diameter Design	N/A Flanged
Overall Width	N/A 0.5625 in
Precision Rating	N/A Not Rated
Radial Dynamic Load Capacity	N/A 1050 lbf
Number of Rows	N/A 1
Fill Slot	N/A Non-Fill Slot
Snap Ring Included	N/A Without Snap Ring
Weight	N/A 0.250 lb
Applications	N/A Agricultural Wheel Bearing Casters Textile Machinery
