Specifications

Supplier Name

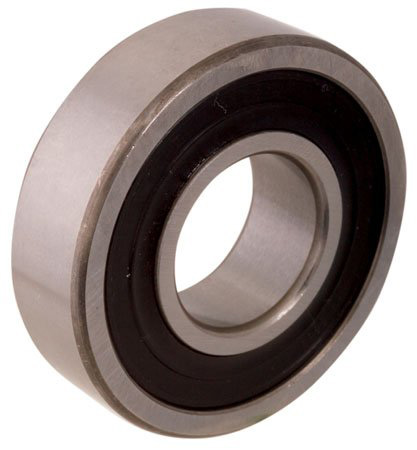

 N/A Nice® Ball Bearings (RBC® Bearings)

Manufacturer Part Number

 N/A 3002FDCTNTG18

UPC Code

 N/A 637401469114

Prop 65

 N/A Yes

Axial Static Load Capacity

 N/A 170 lbf

Bearing Material

 N/A 52100 Bearing Quality Steel

Bore Diameter

 N/A 0.25 in

Bore Type

 N/A Round

Cage Material

 N/A Nylon

Closure Type

 N/A Double Sealed

Dynamic Load Capacity

 N/A 255 lbf

Fillet Radius

 N/A 0.012 in

Finish/Coating

 N/A Chrome Steel

Inner Ring Width

 N/A 0.2500 in

Internal Clearance

 N/A C0

Operating Temperature [Max]

 N/A 300 ºF

Maximum Speed

 N/A 2500 rpm

Outer Ring Width

 N/A 0.25 in

Outside Diameter

 N/A 0.6875 in

Outside Diameter Design

 N/A Flanged

Overall Width

 N/A 0.2500 in

Radial Dynamic Load Capacity

 N/A 255 lbf

Radial Static Load Capacity

 N/A 170 lbf

Number of Rows

 N/A 1

Fill Slot

 N/A Filling Slot

Snap Ring Included

 N/A Without Snap Ring

Static Load Capacity

 N/A 170 lbf

Weight

 N/A 0.023 lb

Features & Benefits

Features & Benefits

 N/A
  • Semi-ground extra light ball bearings are used at up to speeds of 5,000 RPMs
  • Double Seal Bearings are factory lubricated with oil or grease and designed to retain lubricants while keeping contaminates out
  • The seal is on each side of the bearing and is located on the outer race making some contact with the inner race.
  • Round bore bearings are designed for mounting on round shafts.
