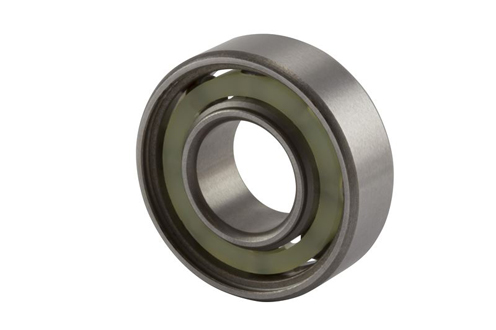

Item # 00106218, Nice® (RBC®) 1600 Series 0.6250 Inch (in) Bore Diameter Precision Ground Ball Bearing On Motion Industries, Inc.

Unit of Measure

UPC Code	N/A 637400291655
Manufacturer Part Number	N/A 1623NSTNBF18
Supplier Name	N/A Nice® Ball Bearings (RBC® Bearings)
Bearing Material	N/A 52100 Bearing Quality Steel
Bore Diameter	N/A 0.6250 in
Bore Type	N/A Round
Cage Material	N/A Nylon
Closure Type	N/A Open
Dynamic Load Capacity	N/A 1878 lbf
Fillet Radius	N/A 0.025 in
Finish/Coating	N/A Chrome Steel
Inner Ring Width	N/A 0.4375 in
Internal Clearance	N/A C0
Operating Temperature [Max]	N/A 284 ºF
Operating Temperature Range	N/A Maximum 250 ºF
Outer Ring Width	N/A 0.4375 in
Outside Diameter	N/A 1.3750 in
Outside Diameter Design	N/A Straight
Overall Width	N/A 0.4375 in
Precision Rating	N/A Not Rated
Row Type and Fill Slot	N/A Single Row Non-Fill Slot
Series	N/A 1600
Snap Ring Included	N/A Without Snap Ring
Static Load Capacity	N/A 850 lbf
Weight	N/A 0.130 lb
