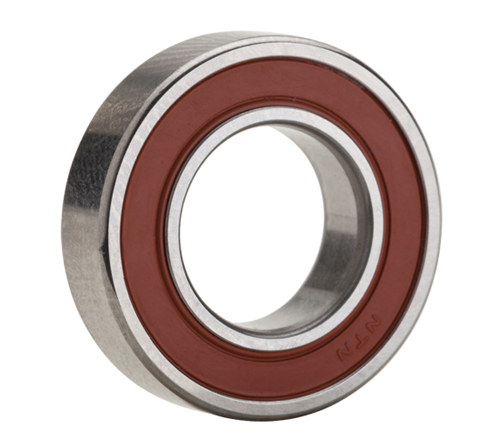

6228LLUC3/EM Ball Bearing
Unit of Measure

Specifications

Supplier Name

 N/A NTN Bearing Company

Manufacturer Part Number

 N/A 6228LLUC3/EM

Series

 N/A 62

Bearing Material

 N/A High Carbon Chrome Steel

Bore Diameter

 N/A 140 mm

Bore Type

 N/A Round

Cage Material

 N/A Steel

Closure Type

 N/A Double Sealed

Dynamic Load Rating

 N/A 166000 N

Fillet Radius

 N/A 3 mm

Finish/Coating

 N/A Uncoated

Inside Ring Width

 N/A 42 mm

Internal Clearance

 N/A C3

Maximum Speed

 N/A 2500 rpm

Operating Temperature Range

 N/A -40 to 120 ºC

Outside Ring Width

 N/A 42 mm

Outside Diameter

 N/A 250 mm

Overall Width

 N/A 42 mm

Precision Rating

 N/A International Organization for Standardization (ISO) Class 0

Number of Rows

 N/A Single-Row

Fill Slot

 N/A Non-Fill Slot

Snap Ring Included

 N/A Without Snap Ring

Standards Met

 N/A MIL-G-3545C

Static Load Rating

 N/A 150000 N

Weight

 N/A 16.76 lb
