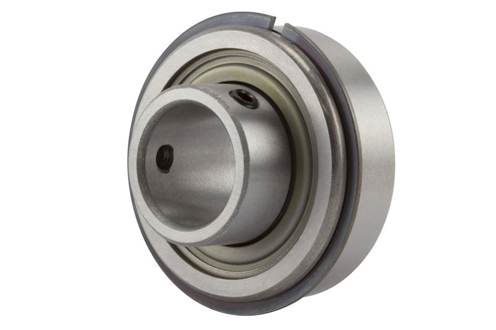

Item # 00107729, Nice® (RBC®) 7600 Series 1.1790 Inch (in) Inner Ring Width Heavy-Duty Radial Ball Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A Nice® Ball Bearings (RBC® Bearings)
Manufacturer Part Number	N/A 7616DLGTNTG18
UPC Code	N/A 637400292874
Series	N/A 7600
Bearing Material	N/A 52100 Bearing Quality Steel
Bore Type	N/A Round
Bore Diameter	N/A 1.0000 in
Cage Material	N/A Nylon
Closure Type	N/A Double Sealed
Dynamic Load Capacity	N/A 2970 lbf
Fillet Radius	N/A 0.035 in
Finish/Coating	N/A Chrome Steel
Inner Ring Width	N/A 1.179 in
Internal Clearance	N/A C0
Maximum Speed	N/A 5000 rpm
Operating Temperature [Max]	N/A 300 ºF
Outer Ring Width	N/A 0.625 in
Outside Diameter	N/A 2.0000 in
Overall Width	N/A 1.1790 in
Outside Diameter Design	N/A Straight with Snap Ring Groove
Precision Rating	N/A Not Rated
Number of Rows	N/A 1
Fill Slot	N/A Non-Fill Slot
Static Load Capacity	N/A 1350 lbf
Snap Ring Included	N/A With Snap Ring
Weight	N/A 0.4 lb
