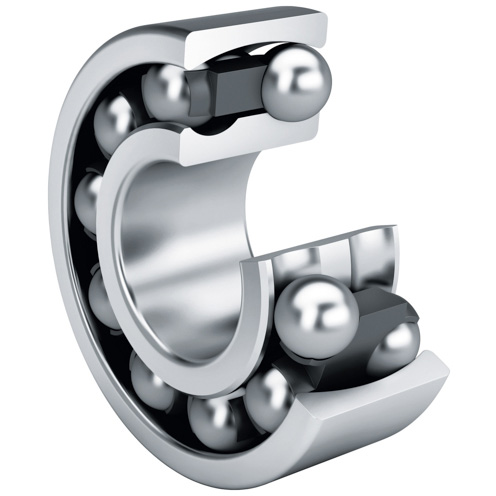

2207-K-TVH-C3 Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 2207-K-TVH-C3

Bore Diameter

 N/A 35 mm

Bore Type

 N/A Tapered 1:12

Cage Material

 N/A Polyamide

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 33000 N

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C3

Maximum Misalignment

 N/A 4 º

Maximum Speed

 N/A 9500 rpm

Operating Temperature [Max]

 N/A +120 ºC

Outer Ring Width

 N/A 23 mm

Outside Diameter

 N/A 72 mm

Overall Width

 N/A 23 mm

Precision Rating

 N/A Annular Bearings Engineers Committee (ABEC) 1 (International Organization for Standardization (ISO) Class Normal) P0

Series

 N/A 22

Standards Met

 N/A DIN 630

Static Load Rating

 N/A 8900 N

Weight

 N/A 0.87 lb
