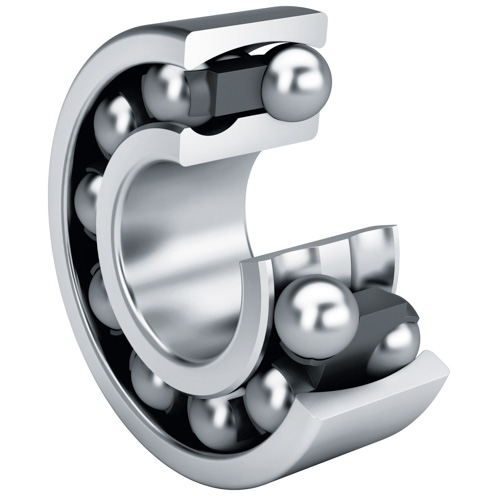

2206-K-2RS-TVH-C3 Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 2206-K-2RS-TVH-C3

Bore Diameter

 N/A 30 mm

Bore Type

 N/A Tapered 1:12

Cage Material

 N/A Polyamide

Closure Type

 N/A Double Sealed

Dynamic Load Rating

 N/A 15900 N

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C3

Maximum Misalignment

 N/A 1.5 º

Maximum Speed

 N/A 8000 rpm

Operating Temperature Range

 N/A -30 to 100 ºC

Outer Ring Width

 N/A 20 mm

Outside Diameter

 N/A 62 mm

Overall Width

 N/A 20 mm

Precision Rating

 N/A Not Rated

Series

 N/A 22

Standards Met

 N/A DIN 630

Static Load Rating

 N/A 4600 N

Weight

 N/A 0.56 lb
