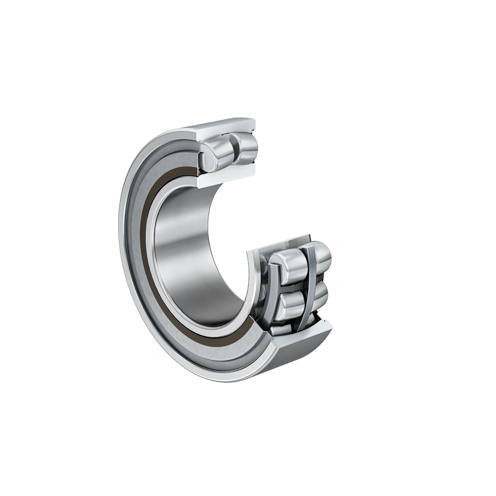

2220-M Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 2220-M

Bore Diameter

 N/A 100 mm

Bore Type

 N/A Straight

Cage Material

 N/A Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 98000 N

Fillet Radius

 N/A 2.1 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Maximum Misalignment

 N/A 4 º

Maximum Speed

 N/A 5600 rpm

Operating Temperature Range

 N/A -30 to 150 ºC

Outer Ring Width

 N/A 46 mm

Outside Diameter

 N/A 180 mm

Overall Width

 N/A 46 mm

Precision Rating

 N/A Annular Bearings Engineers Committee (ABEC) 1 (International Organization for Standardization (ISO) Class Normal) P0

Series

 N/A 22

Standards Met

 N/A DIN 630

Static Load Rating

 N/A 40000 N

Weight

 N/A 10.96 lb
