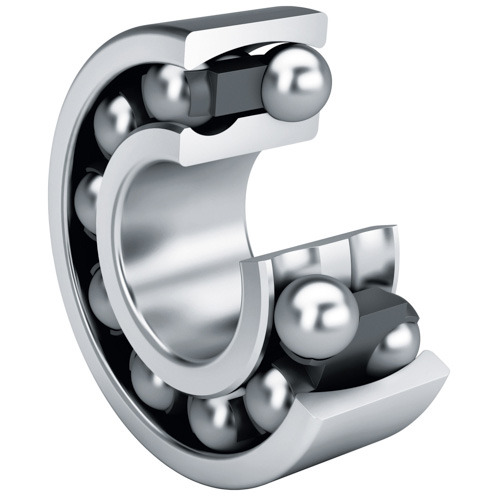

2203-2RS-TVH Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 2203-2RS-TVH

Bore Diameter

 N/A 17 mm

Bore Type

 N/A Straight

Cage Material

 N/A Polyamide

Closure Type

 N/A Double Sealed

Dynamic Load Rating

 N/A 8100 N

Fillet Radius

 N/A 0.6 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C0

Maximum Misalignment

 N/A 1.5 º

Maximum Speed

 N/A 14000 rpm

Operating Temperature Range

 N/A -30 to 100 ºC

Outer Ring Width

 N/A 16 mm

Outside Diameter

 N/A 40 mm

Overall Width

 N/A 16 mm

Precision Rating

 N/A Not Rated

Series

 N/A 22

Standards Met

 N/A DIN 630

Static Load Rating

 N/A 2000 N

Weight

 N/A 0.19 lb
