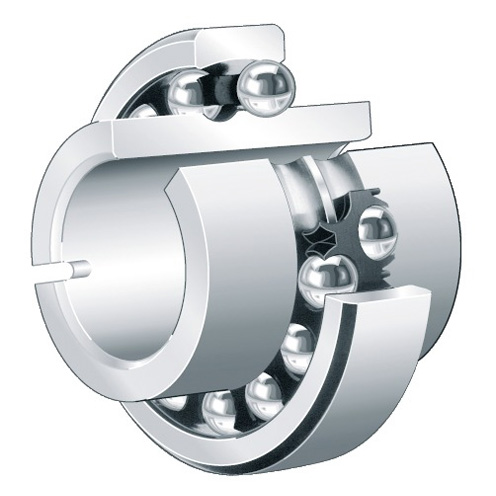

11207-TVH Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 11207-TVH

Bore Diameter

 N/A 35 mm

Bore Type

 N/A Straight

Cage Material

 N/A Polyamide

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 16000 N

Fillet Radius

 N/A 1 mm

Finish/Coating

 N/A Uncoated

Inner Ring Width

 N/A 52 mm

Internal Clearance

 N/A C0

Maximum Misalignment

 N/A 4 º

Maximum Speed

 N/A 7500 rpm

Operating Temperature [Max]

 N/A +120 ºC

Outer Ring Width

 N/A 17 mm

Outside Diameter

 N/A 72 mm

Overall Width

 N/A 52 mm

Precision Rating

 N/A Not Rated

Series

 N/A 112

Standards Met

 N/A DIN 630

Static Load Rating

 N/A 5100 N

Weight

 N/A 1.19 lb
