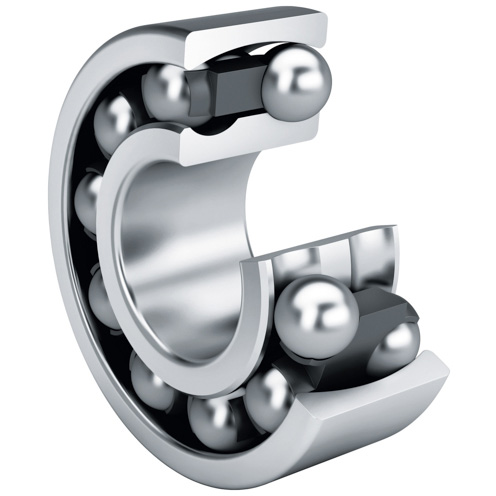

1319-K-M-C3 Bearing
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A 1319-K-M-C3

Bore Diameter

 N/A 95 mm

Bore Type

 N/A Tapered 1:12

Cage Material

 N/A Brass

Closure Type

 N/A Open

Dynamic Load Rating

 N/A 134000 N

Fillet Radius

 N/A 2.5 mm

Finish/Coating

 N/A Uncoated

Internal Clearance

 N/A C3

Maximum Misalignment

 N/A 4 º

Maximum Speed

 N/A 5000 rpm

Operating Temperature Range

 N/A -30 to 150 ºC

Outer Ring Width

 N/A 45 mm

Outside Diameter

 N/A 200 mm

Overall Width

 N/A 45 mm

Precision Rating

 N/A Not Rated

Series

 N/A 13

Standards Met

 N/A DIN 630

Static Load Rating

 N/A 50000 N

Weight

 N/A 15.18 lb
