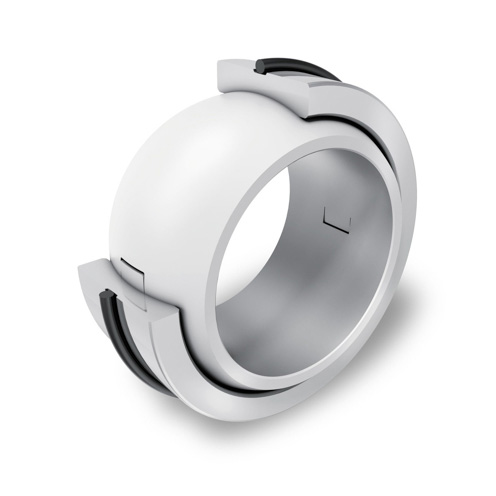

GE8-DO Elges® Spherical Plain Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE8-DO

Bearing Type

 N/A Radial Bearing

Bore Diameter

 N/A 8 mm

Closure Type

 N/A Open

Inner Ring Material

 N/A Steel

Inner Ring Width

 N/A 8 mm

Lubrication Type

 N/A Maintenance Free/Self-Lubricating

Misalignment Angle

 N/A 15 º

Operating Temperature Range

 N/A -60 to 200 ºC

Outer Ring Material

 N/A Chrome Steel

Outer Ring Width

 N/A 5 mm

Outside Diameter

 N/A 16 mm

Radial Dynamic Load Capacity

 N/A 5500 N

Radial Static Load Capacity

 N/A 27500 N

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-1

Weight

 N/A 0.02 lb
