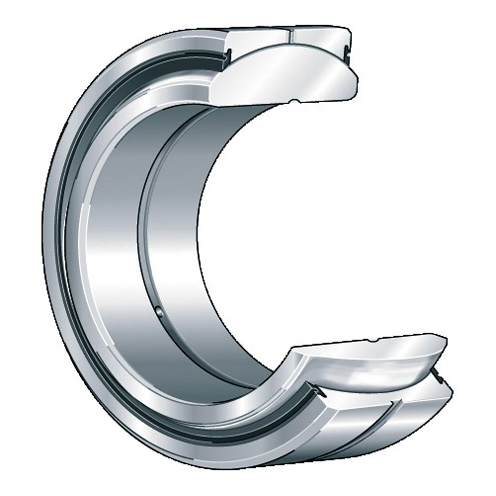

GE50-DO-2RS Elges® Spherical Plain Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE50-DO-2RS

Bearing Type

 N/A Radial Bearing

Bore Diameter

 N/A 50 mm

Closure Type

 N/A Sealed

Inner Ring Material

 N/A Chrome-Plated Steel

Inner Ring Width

 N/A 35 mm

Lubrication Type

 N/A Requires Lubrication

Misalignment Angle

 N/A 6 º

Operating Temperature Range

 N/A -30 to 130 ºC

Outer Ring Material

 N/A Stainless Steel

Outer Ring Width

 N/A 28 mm

Outside Diameter

 N/A 75 mm

Radial Dynamic Load Capacity

 N/A 156000 N

Radial Static Load Capacity

 N/A 780000 N

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-1

Weight

 N/A 1.43 lb
