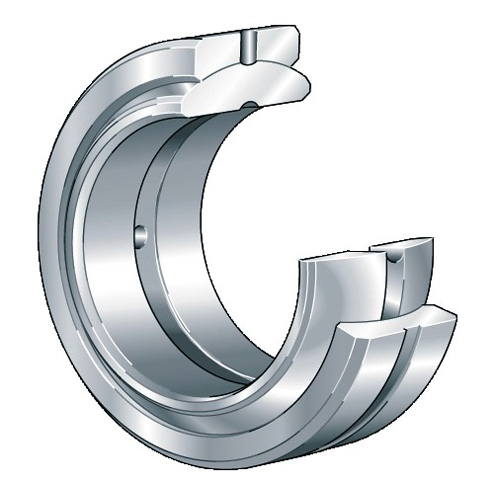

GE15-DO Elges® Spherical Plain Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE15-DO

Bearing Type

 N/A Radial Bearing

Bore Diameter

 N/A 15 mm

Closure Type

 N/A Open

Inner Ring Material

 N/A Steel

Inner Ring Width

 N/A 12 mm

Lubrication Type

 N/A Requires Lubrication

Misalignment Angle

 N/A 8 º

Operating Temperature Range

 N/A -60 to 200 ºC

Outer Ring Material

 N/A Stainless Steel

Outer Ring Width

 N/A 9 mm

Outside Diameter

 N/A 26 mm

Radial Dynamic Load Capacity

 N/A 17000 N

Radial Static Load Capacity

 N/A 85000 N

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-1

Weight

 N/A 0.07 lb
