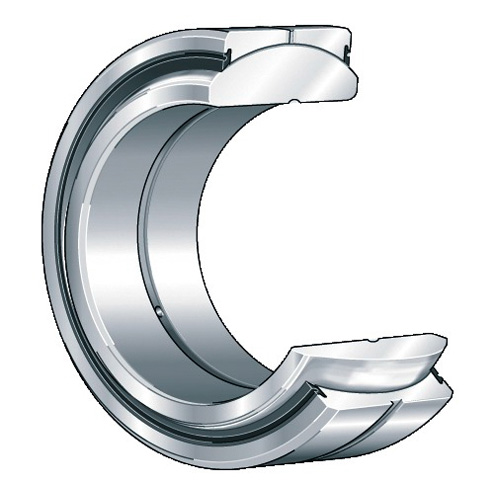

GE80-DO-2RS Elges® Spherical Plain Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE80-DO-2RS

Bearing Type

 N/A Radial Bearing

Bore Diameter

 N/A 80 mm

Closure Type

 N/A Sealed

Inner Ring Material

 N/A Steel

Inner Ring Width

 N/A 55 mm

Lubrication Type

 N/A Requires Lubrication

UPC Code

 N/A 4012802530810

Misalignment Angle

 N/A 6 º

Operating Temperature Range

 N/A -30 to 130 ºC

Outer Ring Material

 N/A Steel

Outer Ring Width

 N/A 45 mm

Outside Diameter

 N/A 120 mm

Radial Dynamic Load Capacity

 N/A 402000 N

Radial Static Load Capacity

 N/A 2010000 N

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-1

Weight

 N/A 5.9400 lb
