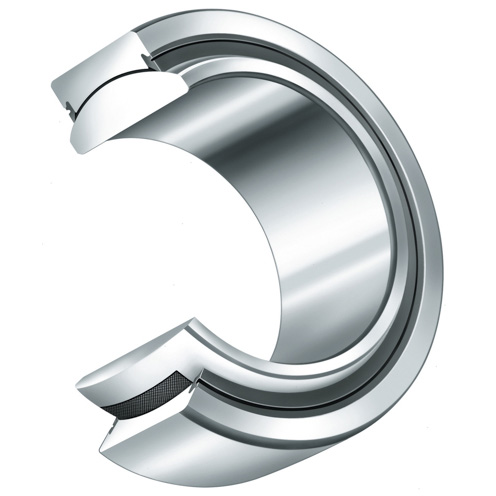

GE160-UK-2RS Elges® Spherical Plain
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE160-UK-2RS

Bearing Type

 N/A Radial Bearing

Bore Diameter

 N/A 160 mm

Closure Type

 N/A Sealed

Inner Ring Material

 N/A Chrome-Plated Steel

Inner Ring Width

 N/A 105 mm

Lubrication Type

 N/A Maintenance Free/Self-Lubricating

Misalignment Angle

 N/A 8 º

Operating Temperature Range

 N/A -30 to 130 ºC

Outer Ring Material

 N/A Chrome Steel

Outer Ring Width

 N/A 80 mm

Outside Diameter

 N/A 230 mm

Race Material

 N/A Polytetrafluoroethylene (PTFE) Composite

Radial Dynamic Load Capacity

 N/A 3840000 N

Radial Static Load Capacity

 N/A 6400000 N

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-1

Weight

 N/A 36.72 lb
