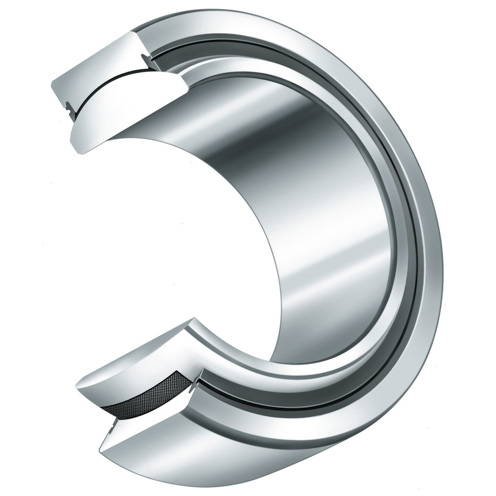

GE260-UK-2RS Elges® Spherical Plain
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A GE260-UK-2RS

Bearing Type

 N/A Radial Bearing

Bore Diameter

 N/A 260 mm

Closure Type

 N/A Sealed

Inner Ring Material

 N/A Chrome-Plated Steel

Inner Ring Width

 N/A 150 mm

Lubrication Type

 N/A Maintenance Free/Self-Lubricating

Misalignment Angle

 N/A 7 º

Operating Temperature Range

 N/A -30 to 130 ºC

Outer Ring Material

 N/A Steel

Outer Ring Width

 N/A 110 mm

Outside Diameter

 N/A 370 mm

Race Material

 N/A Polytetrafluoroethylene (PTFE) Composite

Radial Dynamic Load Capacity

 N/A 8550000 N

Radial Static Load Capacity

 N/A 14250000 N

Standards Met

 N/A International Organization for Standardization (ISO)-12 240-1

Weight

 N/A 134.80 lb
